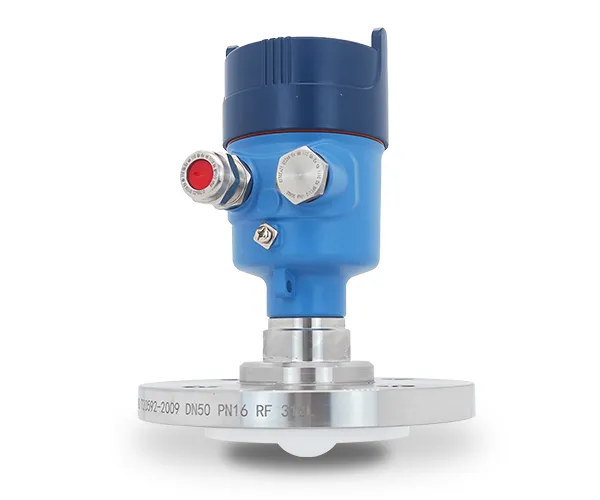

    ADV Series Radar Level Transmitter (ATEX/HART/SIL 2 Approved)

    Safety-certified radar sensor for continuous level measurement of liquids, slurries and solids in demanding industrial environments

    Radar level transmitters are designed for continuous and accurate measurement of liquids and solids, even in extreme process conditions. They operate stably in temperatures ranging from -196°C to 450°C, and can handle up to 1000°C when paired with specialized high-temperature flanges. These continuous level measurement radar sensors use millimeter-wave chips and waveguide antennas to keep the signal stable and accurate, even in tough industrial environments such as chemical plants, metal processing, and energy facilities.

    Certifications & Standards
    The transmitters are certified for safety and quality, holding TÜV SIL2, CE, HART, and ATEX explosion-proof certifications. They are also compatible with the FDT/DTM framework for easy integration and configuration.

    About Microcreative
    About Microcreative
    About Microcreative
    About Microcreative
    About Microcreative
    Request a Quote
    Parameters
    • Frequency Range 76 – 81 GHz millimeter-wave radar
    • Process Temperature −40 °C / up to +200 °C (maximum)
    • Process Pressure Up to 2 MPa
    • Measuring Accuracy ±1 mm
    • Measuring Range 10m/30m/60m/120m
    • Explosion Protection Ex ia ⅡC T6 Ga
    • Beam Angle 3° / 8°
    • Installation Thread or flange mounting
    • Protection Rating IP67
    • Housing Material Aluminum alloy / Stainless steel
    • Communication Interface 4–20 mA / HART / RS485 / TTL / FDT / DTM
    • Certifications SIL2, CE, ATEX Explosion-proof, HART
    • User Interface 196×96 LCD display with 4-button keypad, PC software, or HART communicator
    • Dimensions (L × W × H) 106 × 84 × 201 mm
    • Weight Approx. 1.525 kg

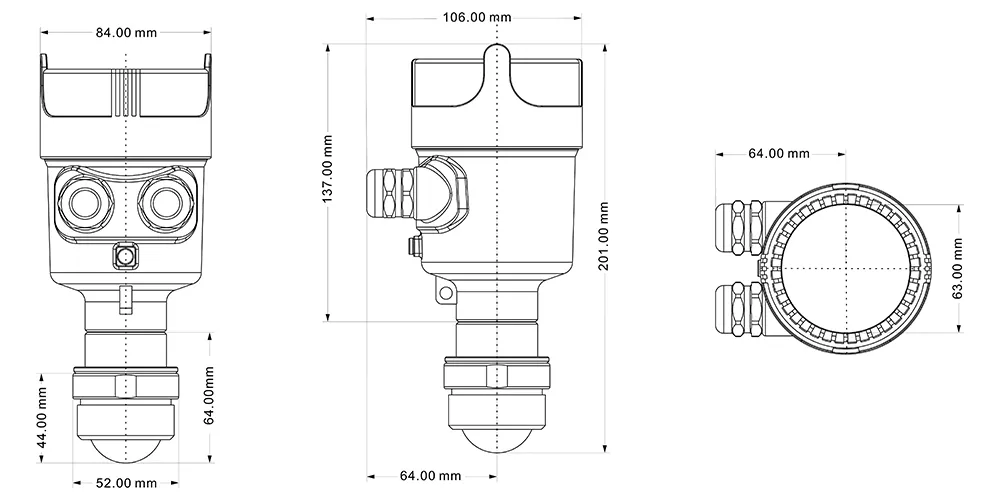

    Structure Diagram
    Structure Diagram
    Features
    • Built with self-developed radar chips that provide ±1 mm accuracy and a blind zone of just 2 cm
    • Available with 3° and 8° beam angles to ensure focused and accurate detection across different applications
    • Support multiple languages and customizable display layouts to match various operation preferences
    • Allow Bluetooth connection and remote setup for convenient adjustments and maintenance
    • No distance calibration needed, which helps simplify assembly and speed up production
    Optional Products
    Industrial tank-side level display, GPB80

    Industrial tank-side level display
    GPB80

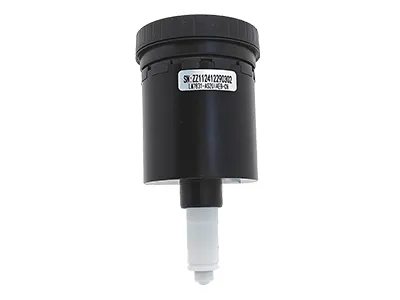

    ADV Series Radar Level Measurement Module

    ADV Series Radar Level Measurement Module
    Applications
    Steel Industry

    Steel Industry
    Used to measure the level of molten metal in high-temperature and high-pressure environments.

    Chemical Industry

    Chemical Industry
    Suitable for standard applications involving liquids and solids, providing stable and precise level readings.

    Energy Industry

    Energy Industry
    Works well in high-temperature and high-pressure conditions, helping measure the level of hot materials used in energy production.

    Petroleum Industry

    Petroleum Industry
    Can measure corrosive or stirred liquids, as well as medium-pressure and vapor conditions. It can also detect oil levels through foam, steam, or floating roofs.

    Food Industry

    Food Industry
    Suitable for liquids and solids under normal temperature and pressure, including slightly corrosive or steamy conditions, and small storage tanks.

    Feed Industry

    Feed Industry
    Ideal to measure bulk solids and liquid additives in production and storage processes.

    Cement Industry

    Cement Industry (slurry and liquid processes)
    Suitable for tanks containing stirred or corrosive liquids, steam, or medium-temperature materials. Level transmitters provide stable level measurement of cement slurry and other high-temperature substances in complex process environments.

    Pharmaceutical Industry

    Pharmaceutical Industry
    Used to measure both liquid and powder raw materials in tanks with stirring, steam, or moderate pressure.

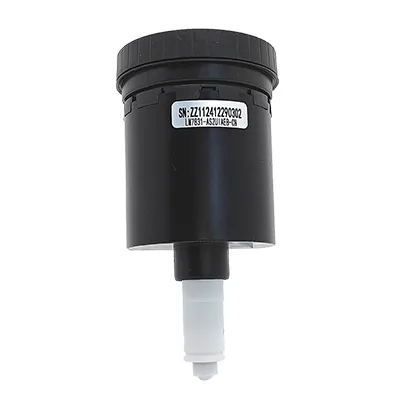

      1. Non-Contacting Radar Level Measurement Module
      2. Non-Contacting Radar Level Measurement Module
        Frequency Range
        76 – 81 GHz millimeter-wave radar
        Process Temperature
        −40 °C / up to +200 °C (maximum)
      3. Radar level measurement modules can accurately detect both liquid and solid materials. They use customized algorithms designed for different working conditions to keep the readings stable, even when the signal is weak or there’s interference around.
    Need Help Finding the Right Radar Sensor?

    We’ll guide you to the right option for your project.

    Other Radar Sensors

    Yes. These level transmitters use millimeter-wave chips and waveguide antennas with a narrow beam angle of 3° or 8°, providing strong resistance to interference. They can measure accurately even when there’s foam, vapor, or steam above crude oil. The readings stay stable in harsh conditions too, such as in cement plants with a lot of dust or in chemical tanks where the material is constantly being stirred.

    Safety-certified radar sensors for continuous level measurement can be paired with the GPB80 industrial tank-side indicator, which displays real-time level data directly beside the tank. This makes on-site monitoring easier and is particularly useful for facilities that manage multiple storage tanks in industries like chemicals, oil, and energy.
