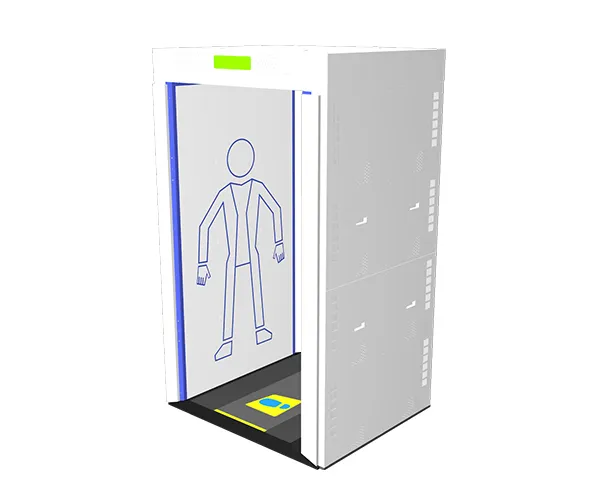

    Human Body Security Scanner (with Top)

    Millimeter wave body scanner utilizing millimeter waves for detecting dangerous items concealed underneath clothing

    HBS-7801 human body security scanner uses Microcreative independently developed 80GHz millimeter wave chips together with 2D MIMO scanning technology to image the human body. Combining Al technology, the full body scanner can identify the suspicious objects hidden under the clothes automatically, whether metal or non-metal, it realizes the non-contact security screening for human body. Thanks to the 2D MIMO scanning technology, this millimeter wave security scanner has faster scanning speed, higher resolution and detection rate, and its unique barrier-free pass design offers a better feeling for the inspected person.

    HBS-7801 human body security scanner holds the certification from Civil Aviation Administration of China (CAAC) A2 level. It can meet the security screening requirement of different customers.

    Request a Quote
    Technical Specifications
    Item Specification Remarks
    Operating Frequency 71–81 GHz /
    Detectable Height Range 0.1–2.2 m Lowest–highest height
    Detectable Width 1 m /
    Spatial Resolution 1 mm /
    Scan Duration 0.29s /
    Inspection Cycle 4 s /
    Noise Level ≤55 dB Measured between the two side panels
    Outer Dimensions 2537 × 1720 × 1498 mm Height × depth × width
    Passage Width 1120 mm Accessories not included
    Operating Temperature 0–40 °C Valid operating range
    Operating Humidity ≤80% RH Relative humidity
    Input Voltage 200–240 V AC (±10%) Requires protective grounding
    Overall Size 2537 × 1249 × 1498 mm (H × D × W) /
    Outer Dimensions (with Base) 2537 × 1720 × 1498 mm (H × D × W) /
    Weight 600 kg /

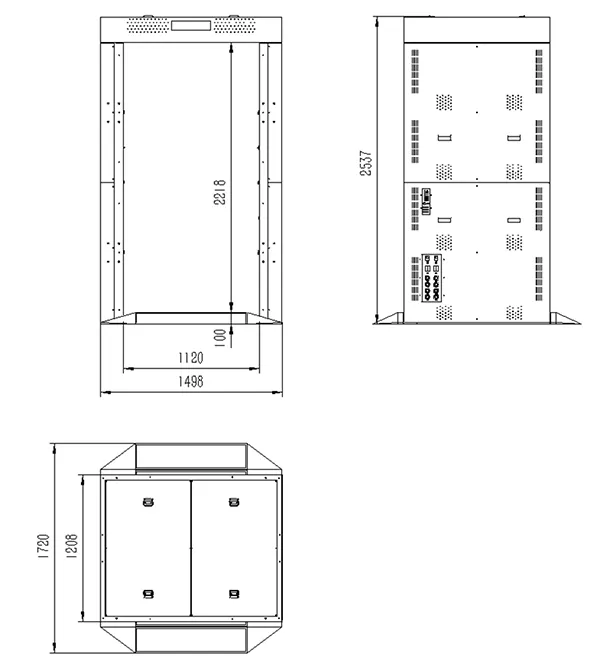

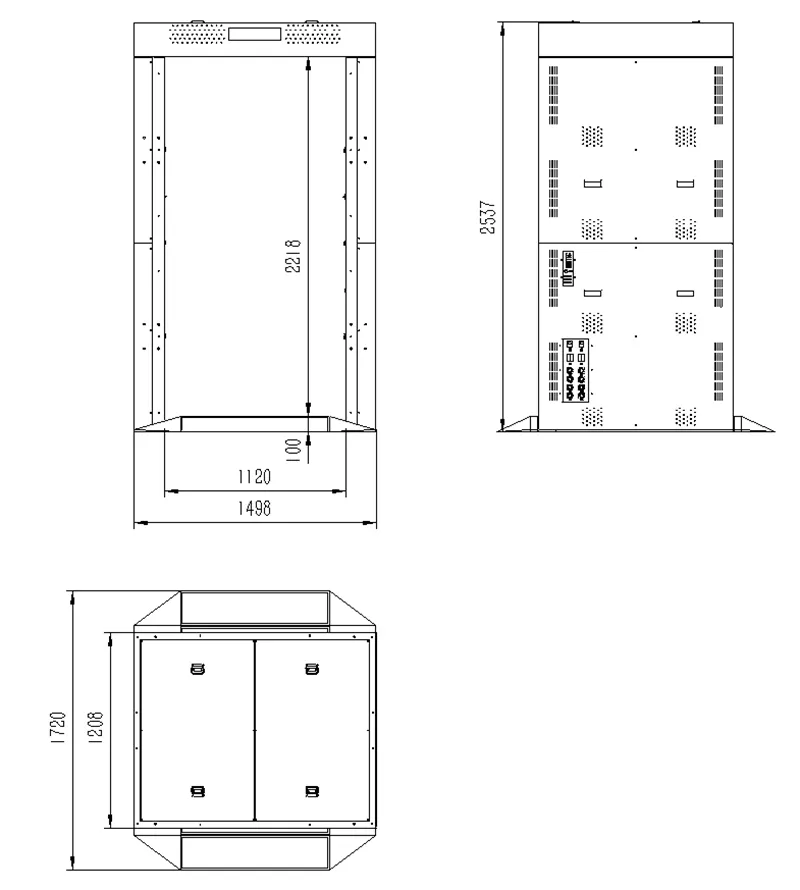

    Dimensions
    Dimensions
    Case Study

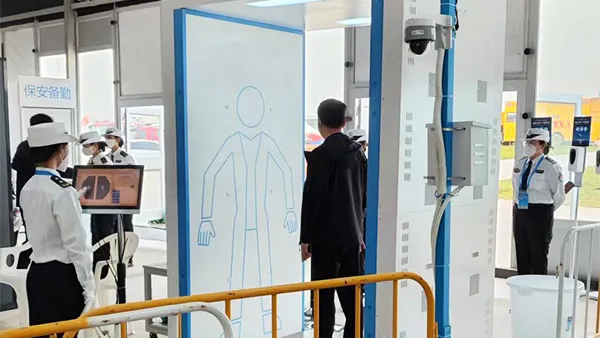

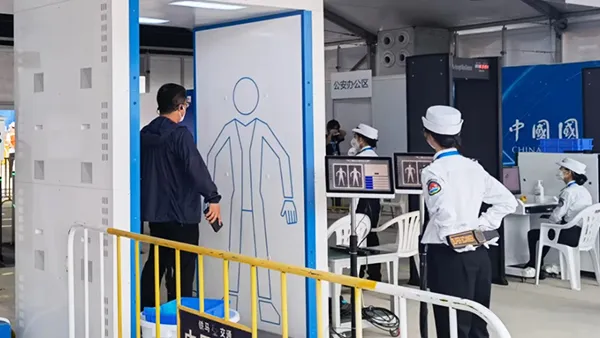

    The 14th China International Aviation & Aerospace Exhibition
    The 14th China International Aviation & Aerospace Exhibition opened on November 8, 2022, at the Zhuhai International Airshow Center. Our independently developed millimeter-wave body scanner was used for personnel screening throughout the event. Its stable performance and accurate detection helped ensure smooth entry operations and contributed to the safe and successful running of the exhibition.

    • The 14th China International Aviation & Aerospace Exhibition
    • The 14th China International Aviation & Aerospace Exhibition
    Learn more
    Applications

    These human body security scanners are widely used in places where security needs to be a bit stricter, such as airports, metro stations, customs checkpoints, or any area that handles sensitive traffic. They help keep the flow moving while still spotting anything hidden under clothing, whether it’s metal or not. The scanner highlights the exact spot where an item is hidden, helping staff check it quickly and keep the area safe without slowing the flow of people.

    • Large EventsLarge Events
    • Metro StationsMetro Stations
    • AirportsAirports
    • Customs & Border ControlCustoms & Border Control
    • HospitalsHospitals
    • Rail Transit HubsRail Transit Hubs
    • Special VenuesSpecial Venues
    Detectable Items
    • FirearmsFirearms
    • KnivesKnives
    • LiquidsLiquids
    • PowdersPowders
    • Ceramic knivesCeramic knives
    • LightersLighters
    • GasolineGasoline
    • CigarettesCigarettes
    • AmmunitionAmmunition
    Features
    • Fast Scanning
      The 2D MIMO array lets the scanners complete a full-body check in as little as 0.1 seconds, with a clear 2 mm resolution.
    • High Precision
      The imaging performance reaches 2 mm × 2 mm, helping identify small concealed items with reliable detail.
    • Low-Maintenance Design
      Electronic scanning means there are no moving parts, so the scanners don’t need calibration and daily upkeep stays simple.
    • Barrier-Free Access
      A 1.12 m wide passage gives people more room to walk through comfortably.
    • Comfortable Screening Experience
      People can just keep their arms relaxed at their sides during the scan, so the whole process feels more natural and comfortable.
    • Optional Add-Ons
      Foot metal detection can be added if it is necessary.
    Main Components
    • Metal Foot ScannerMetal Foot Scanner
    • Active Millimeter-Wave Transceiver ArrayActive Millimeter-Wave Transceiver Array
    • Display moduleDisplay module
    Certificates
    • ISO 9001
      ISO 9001
    • ISO26262
      ISO26262
    • HBS-7801D - CAAC Security Inspection Equipment Use Permit – A2 Level
      HBS-7801D - CAAC Security Inspection Equipment Use Permit – A2 Level
    Need Help Finding the Right Security Scanner?

    We’ll guide you to the right option for your project.

    Other Millimeter Wave Security Scanners

    It can detect things worn on the head. For the hands, passengers open their palms during the check, so security staff can easily see what they’re holding. Because of that, hand-item detection isn’t turned on at the moment, but it can be added if a project really needs it.

    Yes, they do. Thick coats or multiple layers can make the scan less clear, and small items might not show properly. Taking the jacket off helps the check go faster and avoids having to repeat the scan.
