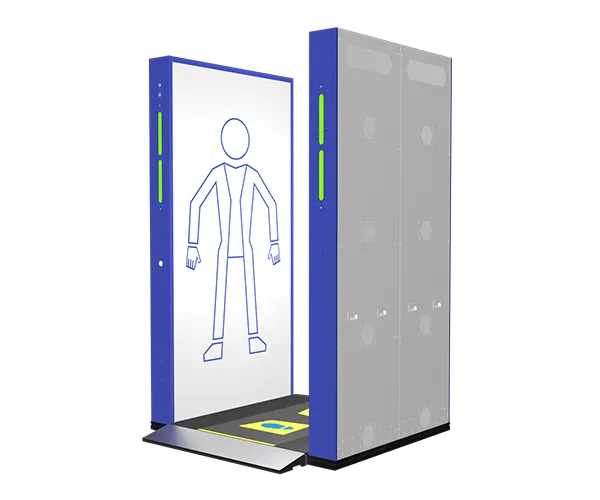

    Human Body Security Scanner (without Top)

    Millimeter wave body scanner utilizing millimeter waves for detecting dangerous items concealed underneath clothing

    HBS-7803 human body security scanner uses Microcreative independently developed 80GHz millimeter wave chips together with 2D MIMO scanning technology to image the human body. Combining Al technology, this full body scanner can identify the suspicious objects hidden under the clothes automatically, whether metal or non-metal, realizing the non-contact security screening for human body. Thanks to the 2D MIMO scanning technology, the human body security scanner has faster scanning speed, higher resolution and detection rate, and its unique barrier-free pass design offers a better feeling for the inspected person.

    HBS-7803 millimeter wave security scanner can also be custom configured by adding the foot metal detection module, which can detect the metal items hidden in the shoes effectively, while extending the detection range to foot area. In addition, this human body security scanner holds the certification from Civil Aviation Administration of China (CAAC) A3 level, which is the highest level in aviation security screening equipment.

    Request a Quote
    Technical Specifications
    Item Specification Remarks
    Operating Frequency 71–81 GHz
    Detection Height 0.1–2.2 m Minimum–maximum
    Detection Width 1 m
    Line Resolution 1 mm
    Scan Time 0.29s
    Inspection Time 3.2 s
    Noise Level ≤55 dB Between two side panels
    External Dimensions 2375 × 1208 × 1498 mm Height × depth × width
    Passage Width 1120 mm Accessories not included
    Operating Temperature 0°C–40°C Temperature range
    Operating Humidity ≤80% Relative humidity range
    Operating Voltage 200–240 V AC (±10%) Proper grounding required
    Product Weight 585 kg

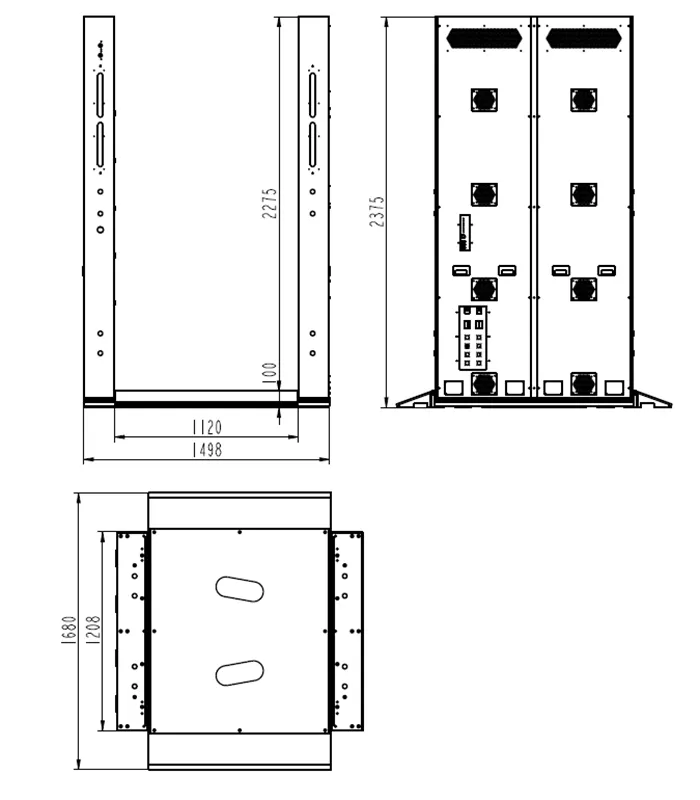

    Dimension Diagram
    Dimension Diagram
    Case Study

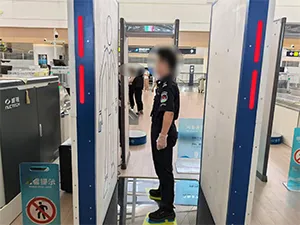

    • mmWave Security Scanner at Ürümqi Tianshan International AirportmmWave Security Scanner at Ürümqi Tianshan International Airport

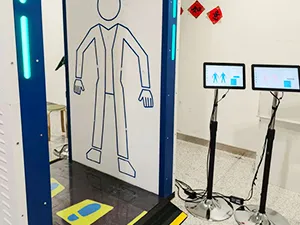

    • mmWave Security Scanner at Zhuhai Jinwan AirportmmWave Security Scanner at Zhuhai Jinwan Airport

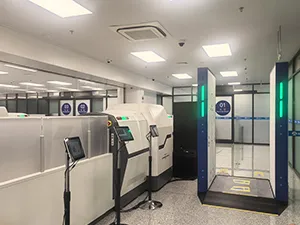

    • mmWave Security Scanner at Beijing Capital International AirportmmWave Security Scanner at Beijing Capital International Airport

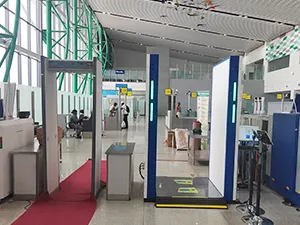

    • mmWave Security Scanner at Nnamdi Azikiwe International AirportmmWave Security Scanner at Nnamdi Azikiwe International Airport
    Learn more
    Applications

    These millimeter wave body scanners are widely used in places where people need to move smoothly but security still has to be strict, such as airports, metro stations, railway hubs, customs checkpoints, and other sensitive areas. They can highlight automatically any hidden metal or non-metal items under clothing, so the security team can see what needs attention right away and keep people moving without causing unnecessary delays.

    • Large EventsLarge Events
    • Metro StationsMetro Stations
    • AirportsAirports
    • Customs & Border ControlCustoms & Border Control
    • HospitalsHospitals
    • Rail Transit HubsRail Transit Hubs
    • Special VenuesSpecial Venues
    Detectable Items
    • FirearmsFirearms
    • KnivesKnives
    • LiquidsLiquids
    • PowdersPowders
    • Ceramic knivesCeramic knives
    • LightersLighters
    • GasolineGasoline
    • CigarettesCigarettes
    • AmmunitionAmmunition
    Features
    • Fast Scanning
      Uses a 2D MIMO array that supports scan times as short as 0.1 seconds with 2 mm resolution.
    • High Precision
      Provides a detailed 2 mm × 2 mm imaging resolution for clearer identification of concealed items.
    • Low Maintenance
      The electronic scanning design has no moving mechanical parts and requires no calibration.
    • Open Walk-Through Layout
      A 1.12 m-wide passage allows users to walk through comfortably without restrictive structures.
    • Improved User Experience
      People can keep their arms resting naturally at their sides during the check, so the whole process feels easier and more comfortable.
    • Optional Add-Ons
      Foot metal detection can be added if it is necessary.
    Main Components

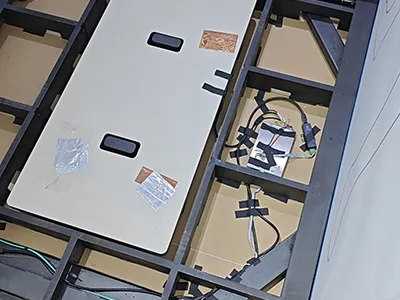

    • Metal Foot ScannerMetal Foot Scanner

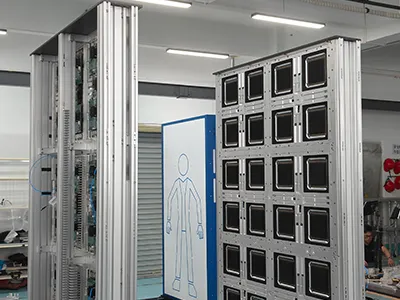

    • Active Millimeter-Wave Transceiver ArrayActive Millimeter-Wave Transceiver Array

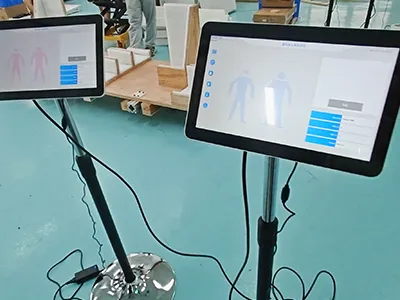

    • Display moduleDisplay module
    Certificates
    • ISO 9001
      ISO 9001

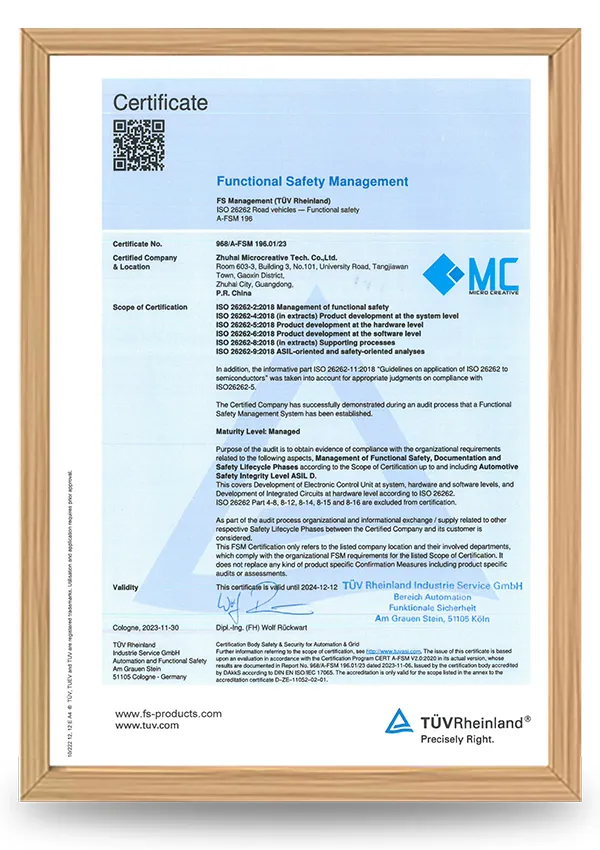

    • ISO26262
      ISO26262

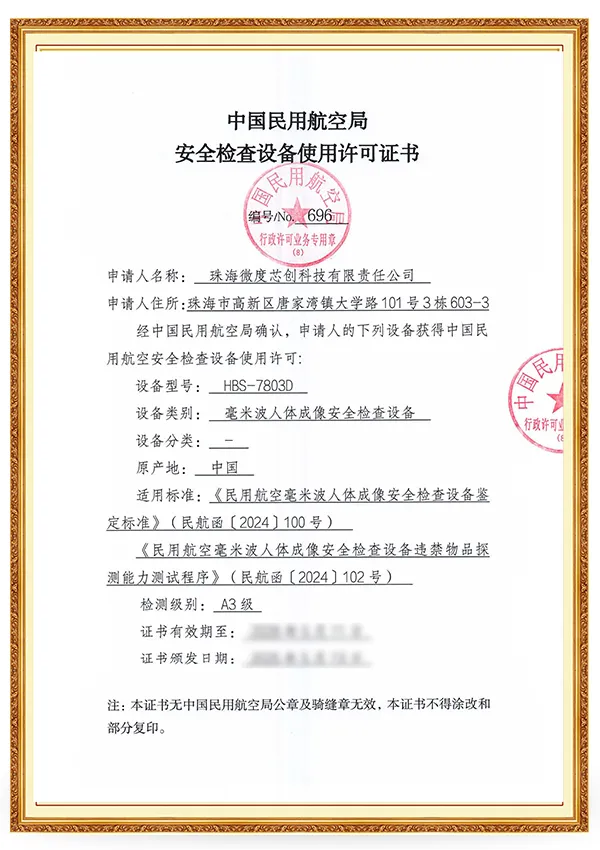

    • HBS-7803D - CAAC Security Inspection Equipment License – A3 Level
      HBS-7803D - CAAC Security Inspection Equipment License – A3 Level
    Need Help Finding the Right Security Scanner?

    We’ll guide you to the right option for your project.

    Other Millimeter Wave Security Scanners

    When the human body security scanner is powered on, it only needs five minutes to get fully ready. After that, it can work all day without any problem, and you don’t need to turn it off after every shift. The only thing we recommend is giving it one full restart each week, just so the screening system refreshes properly and keeps running smoothly in the long term.

    Human body scanners (without top) use a fully electronic 2D MIMO setup with no moving parts, so they stay stable throughout the day. They don’t need recalibration at any point, even during long hours of continuous use. Since the security scanner doesn't have moving parts, there’s nothing inside that can loosen or wear down while it’s running. That’s why the performance stays steady all day and staff don’t need to stop and adjust anything during use.

    The millimeter wave body scanner uses the same AI model that was tested and approved at A3 level by the CAAC, which is the highest grade in their system. Since that model already meets strict requirements, it doesn’t get updated on a regular schedule. If a project requires features that aren’t included by default, like detecting specific items or adding extra screening steps, we can discuss customized options. The team can adjust certain functions to match the needs of the site, as long as those changes stay within the approved safety and performance standards.
