Dimension

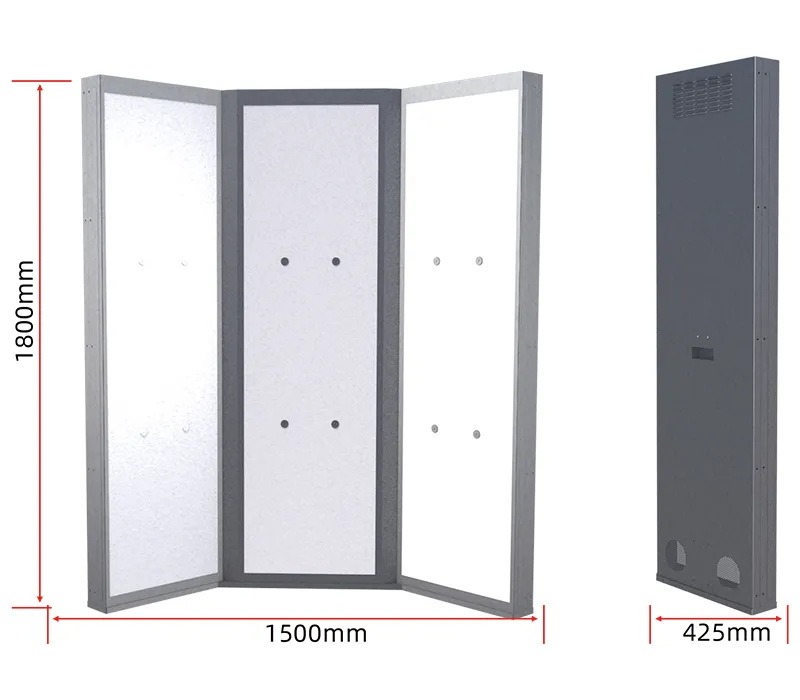

• Single-unit Size 1500 mm × 425 mm × 1800 mm (W × L × H)

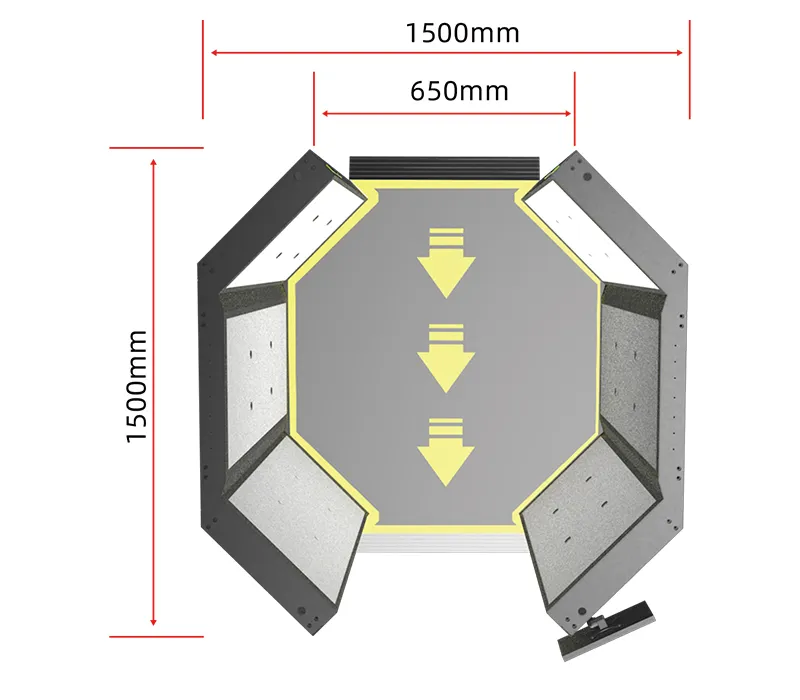

• Full-system Size 1500 mm × 1500 mm × 1800 mm (W × L × H)
• Product Weight 450 kg

Technical Parameters

• Core Chipset In-house developed RF and processing chipsets
• Operating Principle Active millimeter-wave imaging
• Imaging Array Multi-angle folded array
• Scan Time <15 ms
• Spatial Resolution 10 mm
• Line Resolution 5 mm
• Imaging Frame Rate 10 fps

Operating Parameters

• Throughput 1200 people/hour
• Operating Voltage 200 V–240 V, 50 Hz/60 Hz
• Safety Current 10 A
• Rated Power 1500 W
• Standby Power 500 W
• Operating Temperature 0–40°C
• Operating Humidity <90%, non-condensing

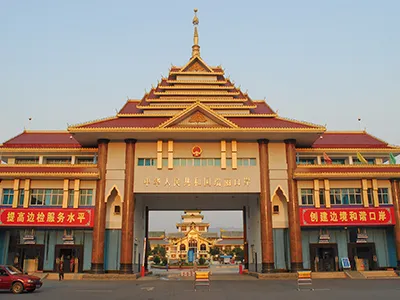

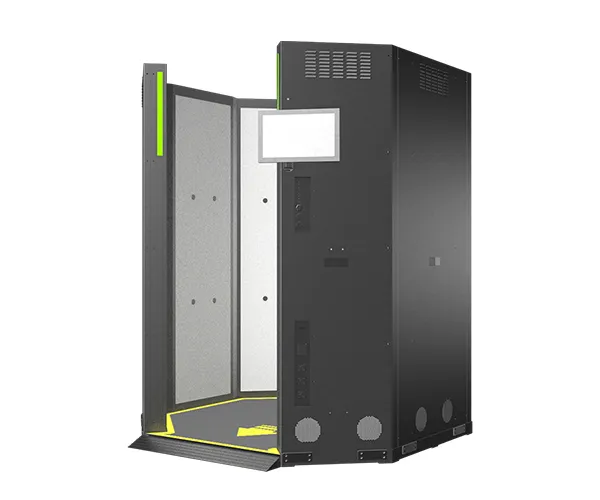

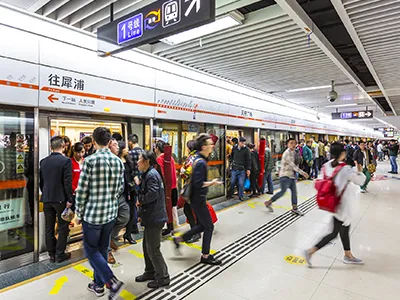

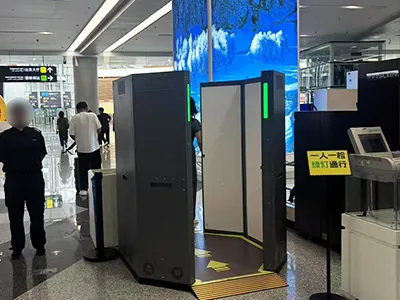

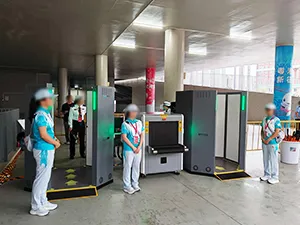

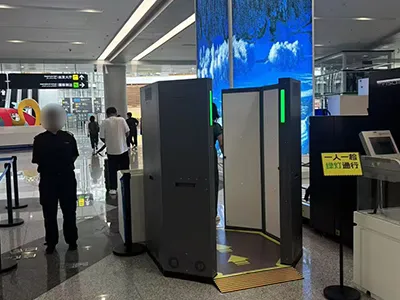

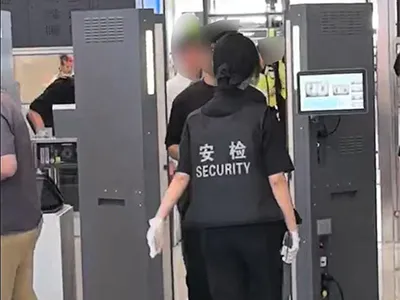

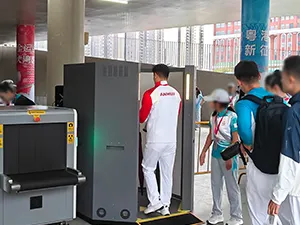

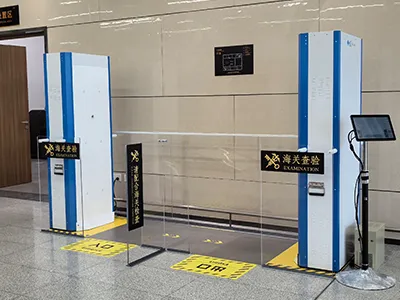

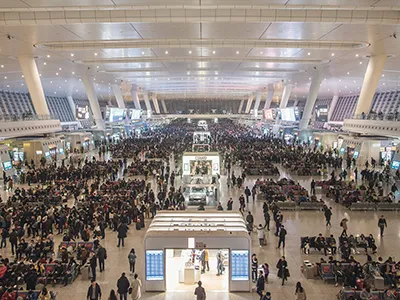

The walk-through millimeter-wave security scanner is used at entrances of metro and high-speed railway stations, hospitals, customs and border-control facilities, major events, and other sites that require efficient, non-contact screening at high passenger flow places.

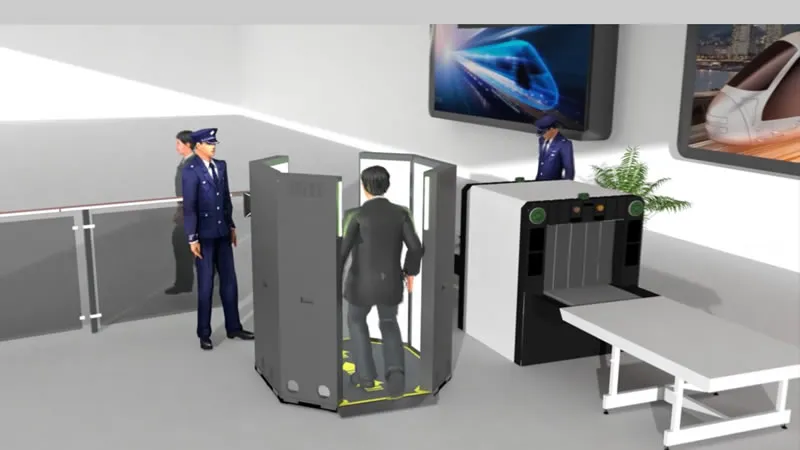

• Walk-Through Screening
  People pass through at a normal pace while the system completes the scan without requiring them to stop.
• High Detection Accuracy
  The scanner uses Microcreative independently developed N-series millimeter wave chips to achieve millimeter-level detection accuracy, it can detect prohibited objects and position them more accurately.
• Effective for a large passenger flow
  Non-contact, non-stay large flow security screening, up to 1,000 people/hour during peak hours.
• Full-Body Coverage

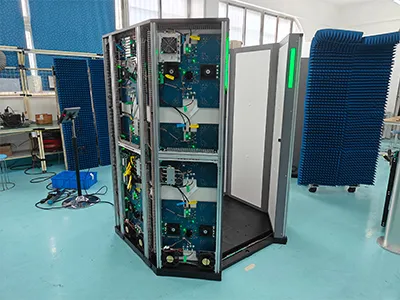

  The active millimeter-wave transmit–receive array scans the entire body in 360°, ensuring no blind spots.
• Intelligent Threat Marking
  Millimeter-wave imaging works together with AI-based recognition to pinpoint the exact location of detected items, showing results clearly alongside the video view.
• Fast On-Site Deployment
  The modular structure allows quick installation with no calibration required at the site.

Key Advantages Over Terahertz Security Screening Gates

Comparison Item
	HBS-1310 Walk-Through Security Scanner	Terahertz Security Body Scanner
Detection Type	Walk-through (open passage)	Semi-enclosed passage
Spatial Resolution	10 mm	25 mm
Scan Speed	10 fps	10 fps
Operating Temperature	0°C to 40°C	0°C to 35°C
Throughput Capacity	1,200 people/hour	1,200 people/hour
Equipment Footprint	Small	Large
Power Consumption	1500 W	4000 W
Imaging Mode	360° full-body imaging	2D imaging

Advantages Over Metal Detection Gates

Comparison Item
	HBS-1310 Walk-Through Security Scanner	Metal Detection Gate
Types of Prohibited Items Detected	Liquids, metals, semiconductors, plastics, gels, ceramics, composite materials and other contraband items	Metals
Contraband Localization	Automatic detection with precise location marking	Unable to locate items
Target Recognition	Deep-learning-based target identification	Not supported
Image Display	Supported	Not supported
Data Linking / Integration	Supported	Not supported
