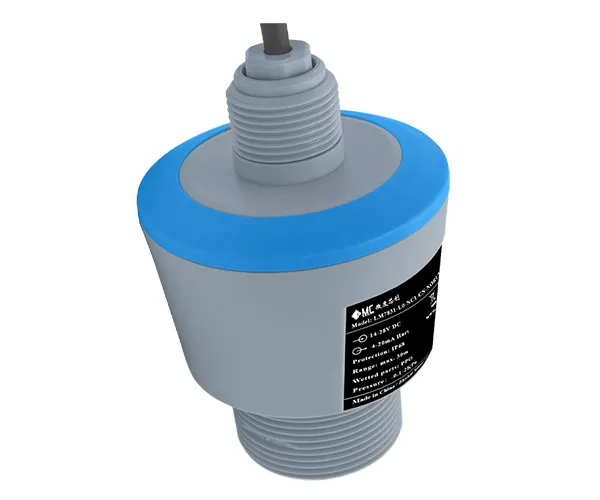

    Compact Radar Level Transmitter

    Radar sensor for continuous non-contact level measurement of liquids, slurries and solids in tanks, sumps and rivers

    Compact radar level transmitters feature an integrated plastic housing with corrosion-resistant properties. Their small size makes installation simple and setup quick, while still providing accurate and stable measurements in standard working conditions. They are commonly used in water treatment, municipal projects, and hydrology to measure water levels in tanks, wells, and natural rivers. They can also be applied to measure solid materials in different storage or processing environments.

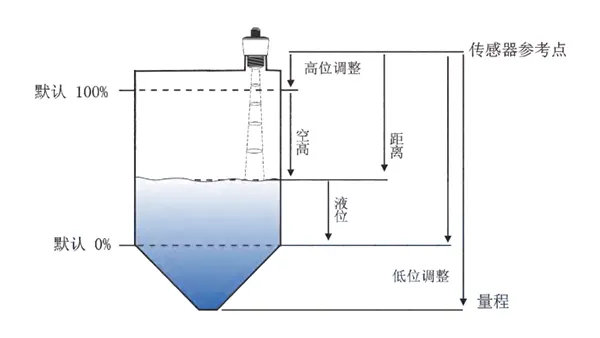

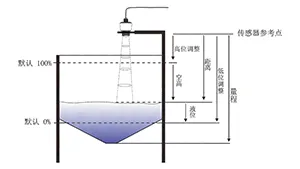

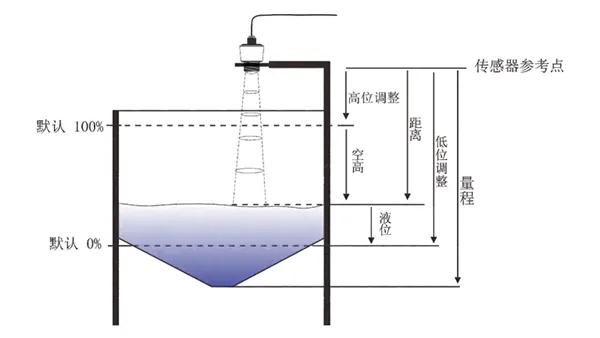

    Installation Diagram

    • Compact Radar Level Transmitter
    • Compact Radar Level Transmitter
    Request a Quote
    Parameters
    • Frequency Range 76 – 81 GHz millimeter-wave radar
    • Process Temperature −40 °C to +85 °C
    • Measuring Accuracy ±1 mm
    • Measuring Range 15m/30m
    • Blind Zone 50 mm
    • Surge Protection 2 kV
    • Explosion Protection Ex ia ⅡC T6 Ga
    • Beam Angle 6°
    • Installation G3/4 or G3/2 thread
    • Protection Rating IP68
    • Housing Material PPO plastic
    • Communication Interface 4–20 mA / HART / RS485
    • User Interface PC software or Bluetooth connection
    • Power Supply DC 14–28 V
    • Dimensions (L × W × H) 75 × 75 × 120 mm
    • Weight Approx. 375 g

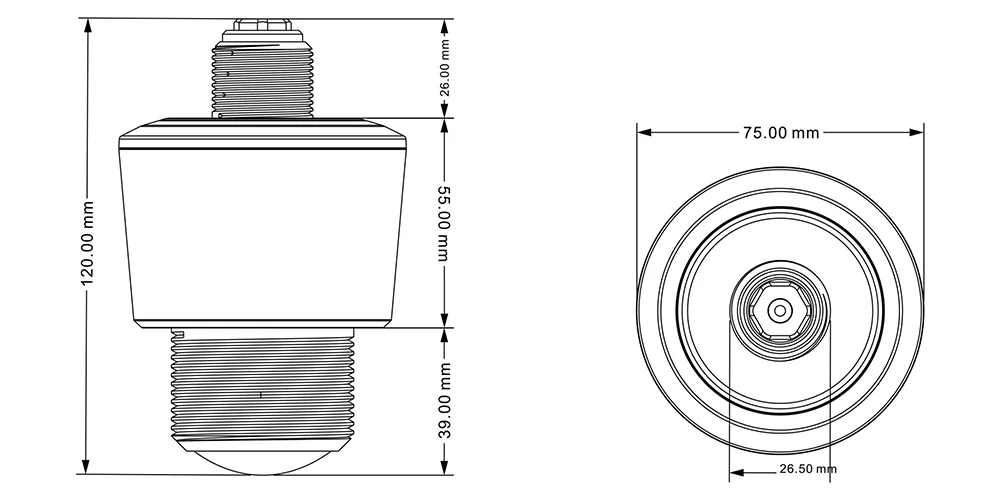

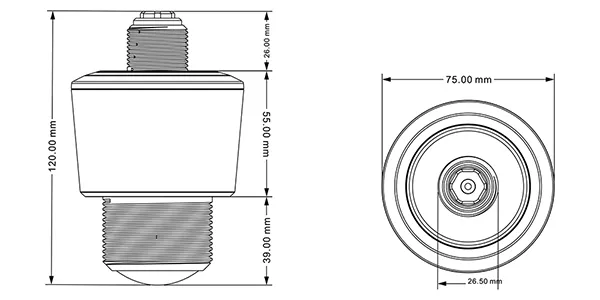

    Dimensional Drawing
    Dimensional Drawing
    Features
    • The compact radar level transmitter has a small, lightweight design that makes installation quick and easy
    • Features a narrow blind zone of just 50 mm for accurate measurement even near the sensor
    • Offers high precision with ±1 mm measuring accuracy
    • Bluetooth connection allows quick setup and easy on-site adjustments.
    • Made with a corrosion-resistant plastic body, suitable for use in chemical or other harsh environments
    • IP68 protection keeps the device safe even if temporarily submerged, though it won’t work properly while underwater
    • When used with a tank-side indicator, it can measure up to four tanks at once for easier monitoring and centralized control
    Applications

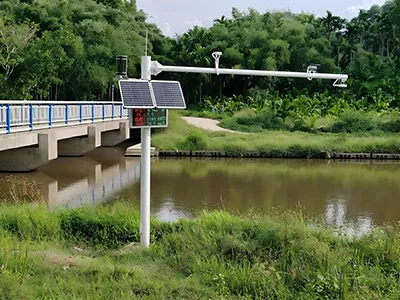

    Water Conservancy

    Water Conservancy
    Used to monitor river and canal water levels, helping track changes and prevent overflow.

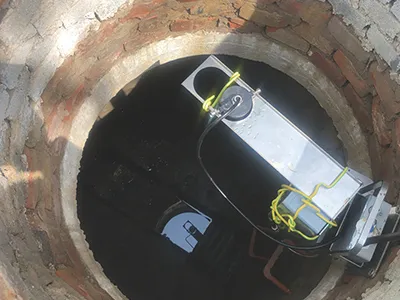

    Municipal Pipeline Networks

    Municipal Pipeline Networks
    Suitable for measuring water levels in manholes and drainage systems for daily inspection and maintenance.
    Related Radar Level Transmitters
    Need Help Finding the Right Radar Sensor?

    We’ll guide you to the right option for your project.

    Other Radar Sensors

    This radar is made with a PPO plastic housing that’s lightweight and easy to install. It’s mainly used to measure river and canal water levels in water management projects, and to monitor manhole levels in city drainage systems. It works well in normal conditions from -40°C to 85°C and can handle humidity and slightly corrosive environments without affecting accuracy.
