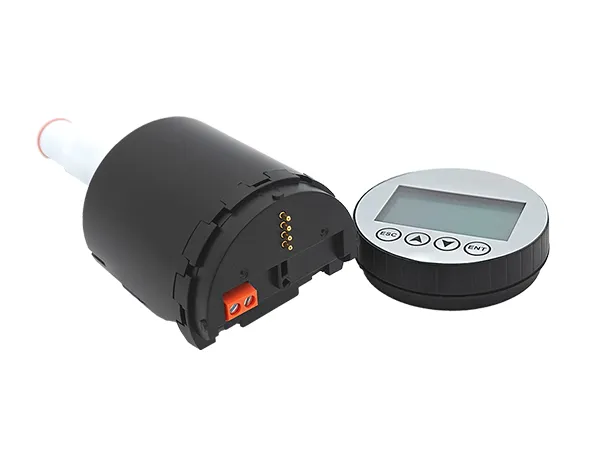

    Non-ADV Series Radar Level Measurement Module

    Millimeter wave radar electronic module used in safety-certified radar level transmitter for liquids and solids

    Radar level measurement modules can accurately detect both liquid and solid materials. They use customized algorithms designed for different working conditions to keep the readings stable, even when the signal is weak or there’s interference around. Thanks to their nonlinear output function, the radar signals can be converted into values like volume, weight, or flow, making them easy to connect with different industrial systems.

    Certifications & Standards
    The radar measurement modules are TÜV-certified for SIL2 functional safety and hold CE and ATEX explosion-proof approvals. They are also HART-certified and support the FDT/DTM framework for seamless system integration.

    About Microcreative
    About Microcreative
    About Microcreative
    About Microcreative
    About Microcreative
    Request a Quote
    Parameters
    • Frequency Range 76 – 81 GHz millimeter-wave radar
    • Process Temperature −40 °C / up to +200 °C (maximum)
    • Process Pressure Up to 2 MPa
    • Measuring Accuracy ±1 mm
    • Measuring Range 10m/30m/60m/120m
    • Explosion Protection Ex ia ⅡC T6 Ga
    • Beam Angle 3° / 8°
    • Installation Suitable for housings made of stainless steel or aluminum alloy
    • Protection Rating IP67
    • Housing Material PC plastic / Nylon
    • Communication Interface 4–20 mA / HART / RS485 / TTL / FDT / DTM
    • Certifications SIL2, CE, ATEX Explosion-proof, HART
    • User Interface 196×96 LCD display with 4-button keypad, PC software, or HART communicator
    • Weight Standard type: 204 g
      High-temperature type: 221 g
    • Dimensions (L × W × H) Standard type: 66.8 × 66.8 × 130.5 mm
      High-temperature type: 66.8 × 66.8 × 158.8 mm

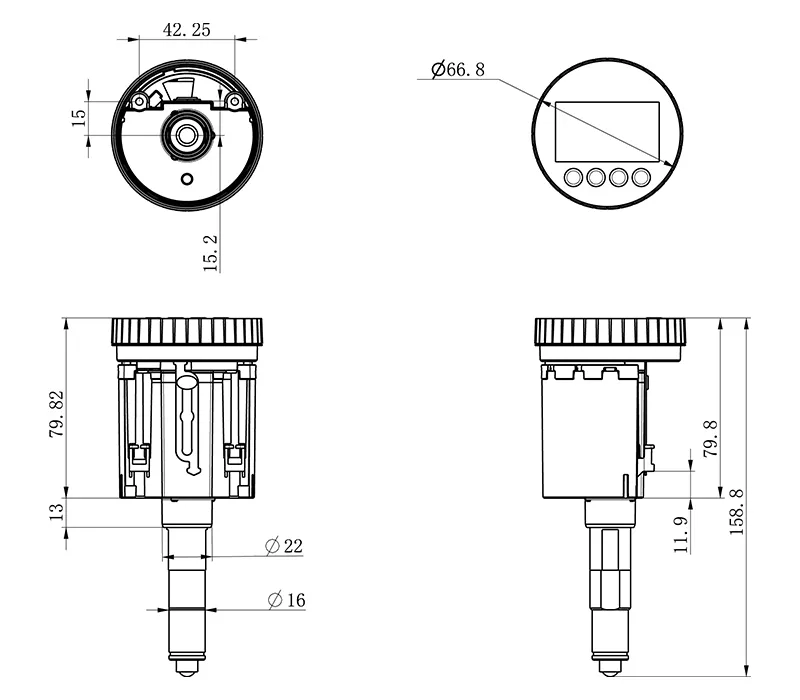

    Structure Diagram

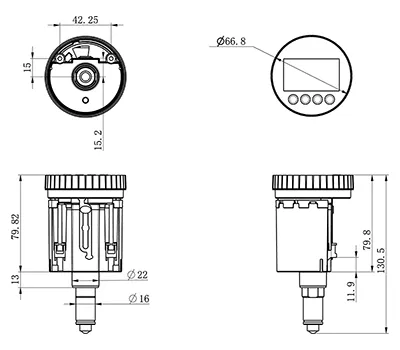

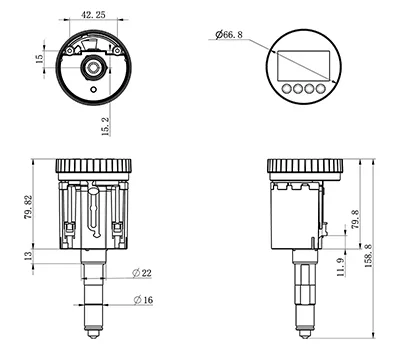

    • Structure Diagram

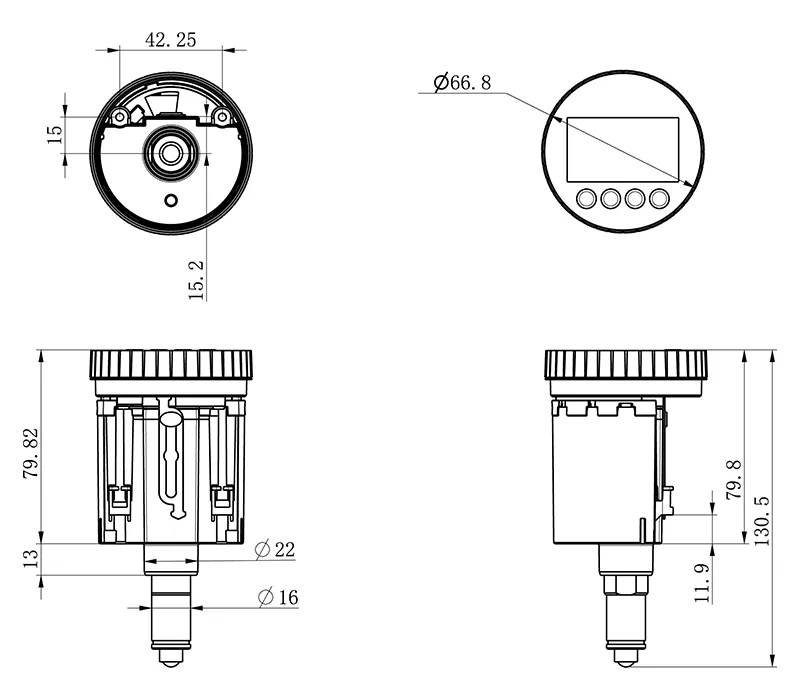

    • Structure Diagram
    Features
    • Radar level measurement modules use self-developed radar chips that deliver high precision and stable signal performance.
    • Offer ±1 mm measuring accuracy and a blind zone as small as 2 cm.
    • Feature narrow beam angles of 3° or 8°, suitable for various installation and process conditions.
    • Support multiple languages and allow customization of the user interface.
    • Compatible with external Bluetooth modules and remote debugging for easier setup and maintenance.
    • Require no distance calibration, simplifying assembly and improving production efficiency.
    Applications
    Steel Industry

    Steel Industry
    Suitable for high-temperature and high-pressure conditions where the level of molten metals needs to be measured accurately.

    Chemical Industry

    Chemical Industry
    Used for monitoring liquid and solid levels under general process conditions, ensuring stable measurement even with medium-density materials.

    Energy Industry

    Energy Industry
    Applied in extreme environments with heat and pressure, capable of measuring the level of high-temperature combustion materials.

    Petroleum Industry

    Petroleum Industry
    Ideal for tanks with agitation, steam, or corrosive liquids under medium temperature and pressure. The radar signal can penetrate foam, vapor, or floating roofs to measure the actual level of crude oil and similar products.

    Food Industry

    Food Industry
    Suitable for liquids and solids stored under normal temperature and pressure. Can handle slightly corrosive materials or mild vapor conditions, providing precise level monitoring in small or medium-sized storage tanks.

    Feed Industry

    Feed Industry
    Works effectively with bulk solids and powders, used for measuring material levels and monitoring liquid additive control in feed production.

    Cement Industry

    Cement Industry (slurry and liquid processes)
    Designed for tanks containing stirred or corrosive liquids, steam, or medium-temperature materials. Suitable for measuring the level of high-temperature materials and cement slurry in storage or process tanks.

    Pharmaceutical Industry

    Pharmaceutical Industry
    Handles stirred or corrosive liquids, as well as processes with vapor under moderate temperature and pressure, suitable for measuring both liquid and powder raw materials.
      1. ADV Series Radar Level Transmitter (ATEX/HART/SIL 2 Approved)
      2. ADV Series Radar Level Transmitter (ATEX/HART/SIL 2 Approved)
        Frequency Range
        76 – 81 GHz millimeter-wave radar
        Process Temperature
        −40 °C / up to +200 °C (maximum)
      3. Radar level transmitters are designed for continuous and accurate measurement of liquids and solids, even in extreme process conditions. They operate stably in temperatures ranging from -196°C to 450°C, and can handle up to 1000°C when paired with specialized high-temperature flanges.
    Need Help Finding the Right Radar Sensor?

    We’ll guide you to the right option for your project.

    Other Radar Sensors

    The high-temperature modules operate from −40 °C to +200 °C and are mainly used in the steel and energy industries, where they measure molten metals and high-temperature combustion materials. The standard modules work within −40 °C to +85 °C and are suitable for applications in the food and pharmaceutical sectors, where they monitor the level of liquids or solid raw materials under normal conditions.
